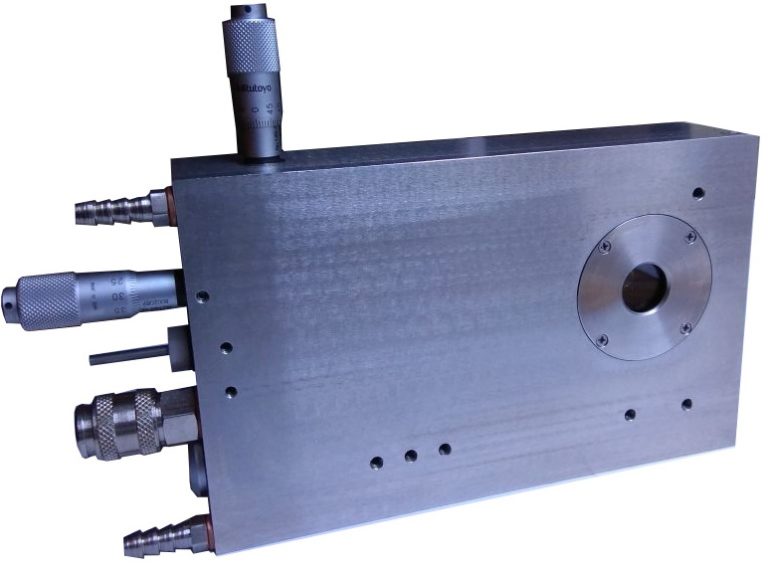

Heating & Cooling stage MHCS400-VS
MHCS400-VS Features
- Wide temperature range
- Programmable temperature controller
- High precision and high resolution temperature measurement and control
- Software or Manual control
- Precession XY micro positioner
- Wide range of viewing apertures
- Removable cover for easy sample access
- Horizontal and vertical mounting
- Gas purge test chamber
- Cooling accessories
- Water cooling frame
MHCS400-VS Technical Specification
| Temperature Range | -190°C to 400°C (Below ambient operation requires optional cooling accessory) |
| Temperature Resolution | 0.1°C with MTDC600 Temperature Controller |
| Temperature Stability | ±0.1°C at 100°C with MTDC600 Temperature Controller |
| Minimum Heating Rate | 0.1°C /min, |
| Maximum Heating Rate | 100°C /min, |
| Maximum Cooling Rate | 60°C /min, |
| Temperature Control Method | Switching PID-PID |
| Temperature Control Sensor | RTD |
| Aperture | 5mm for transmitted mode 30mm for reflected mode |
| Sample Area | 40mm x 40mm |
| Sample Chamber Height | 8,5mm |
| Sample Positioning | XY positioning system for remote manipulation in closed chambers |
| Vacuum/Gas Tight Port | Camozzi Quick-release couplings Series 5000 model 5051 1/8 or KF10 or KF16, other per request |
| Overall Stage Dimensions | 185mm x 102mm x 37mm |
